Ratings table for the PFG product category
kVAR Steps

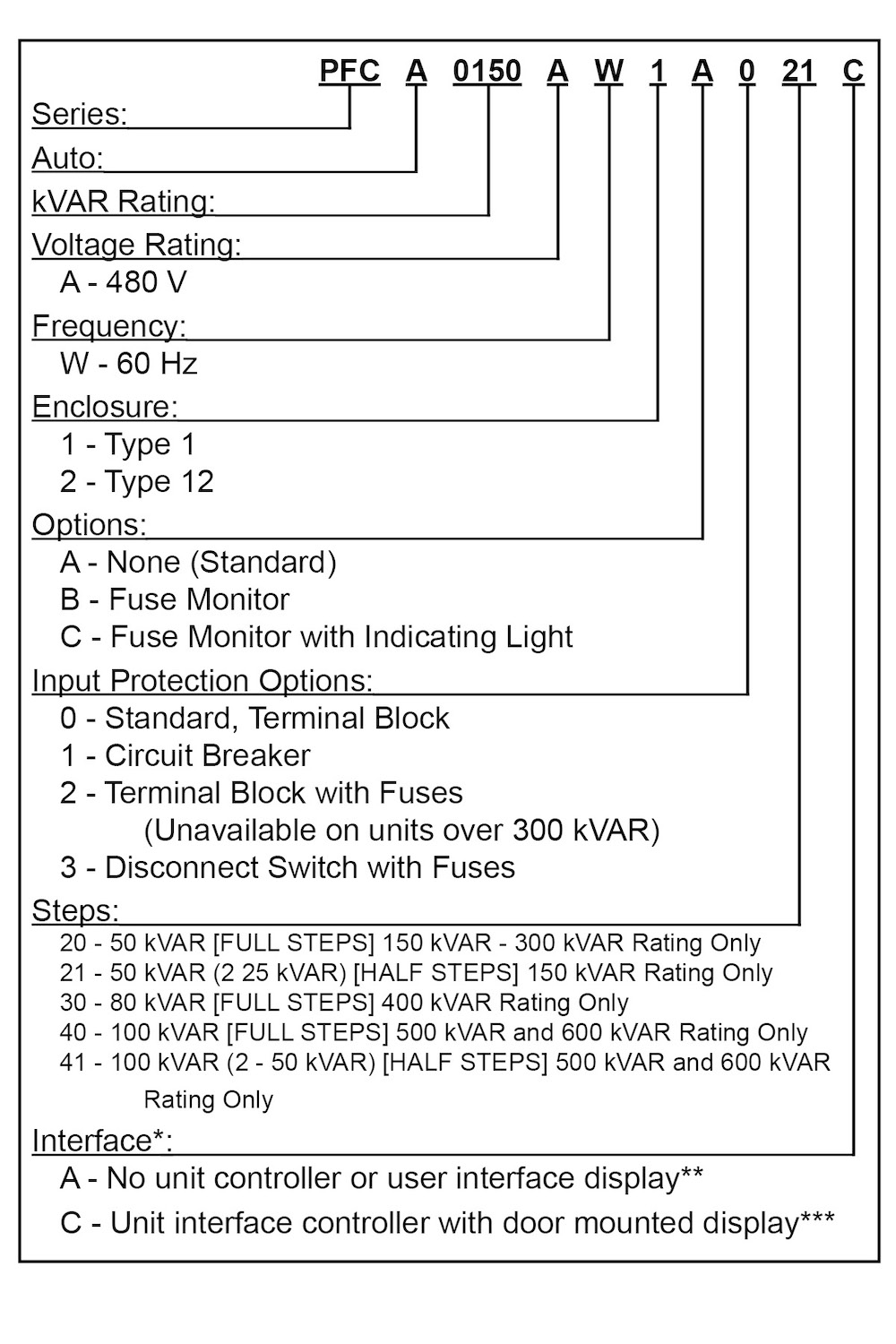

| kVAR | SKU (Part Number) | Drawing | Schematic | Amps | Height (in) | Width (in) | Depth (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 500 | PFCA0500AW1C140C | PDF DXF | PDF DXF | 889 | 96.1 | 72.0 | 27.0 | 2105.0 |
| 600 | PFCA0600AW1C140C | PDF DXF | PDF DXF | 1067 | 96.3 | 72.0 | 39.0 | 2525.0 |
| 300 | PFCA0300AW1C120C | PDF DXF | PDF DXF | 533 | 96.3 | 36.1 | 27.0 | 1250.0 |
| 400 | PFCA0400AW1C130C | PDF DXF | PDF DXF | 711 | 96.1 | 72.0 | 27.0 | 2090.0 |
| 150 | PFCA0150AW1C120C | PDF DXF | PDF DXF | 267 | 96.3 | 24.1 | 23.0 | 735.0 |
| 200 | PFCA0200AW1C120C | PDF DXF | PDF DXF | 356 | 96.3 | 36.1 | 27.0 | 990.0 |
| 250 | PFCA0250AW1C120C | PDF DXF | PDF DXF | 444 | 96.3 | 36.1 | 27.0 | 1085.0 |
