TCI will begin replacing all 3-phase ASC oil filled capacitors to Vishay oil filled capacitors. The rate at which the capacitors will change over is subject to stock availability beginning 09/01/2022. Please see the Product Change Notification for more information. Updated Capacitors and Brackets can be found in the table below.

Sine Wave Filter Kits were developed with systems integrators and experienced panel builders in mind. These kits allow for high performance filters to be incorporated into a VFD/filter common enclosure.

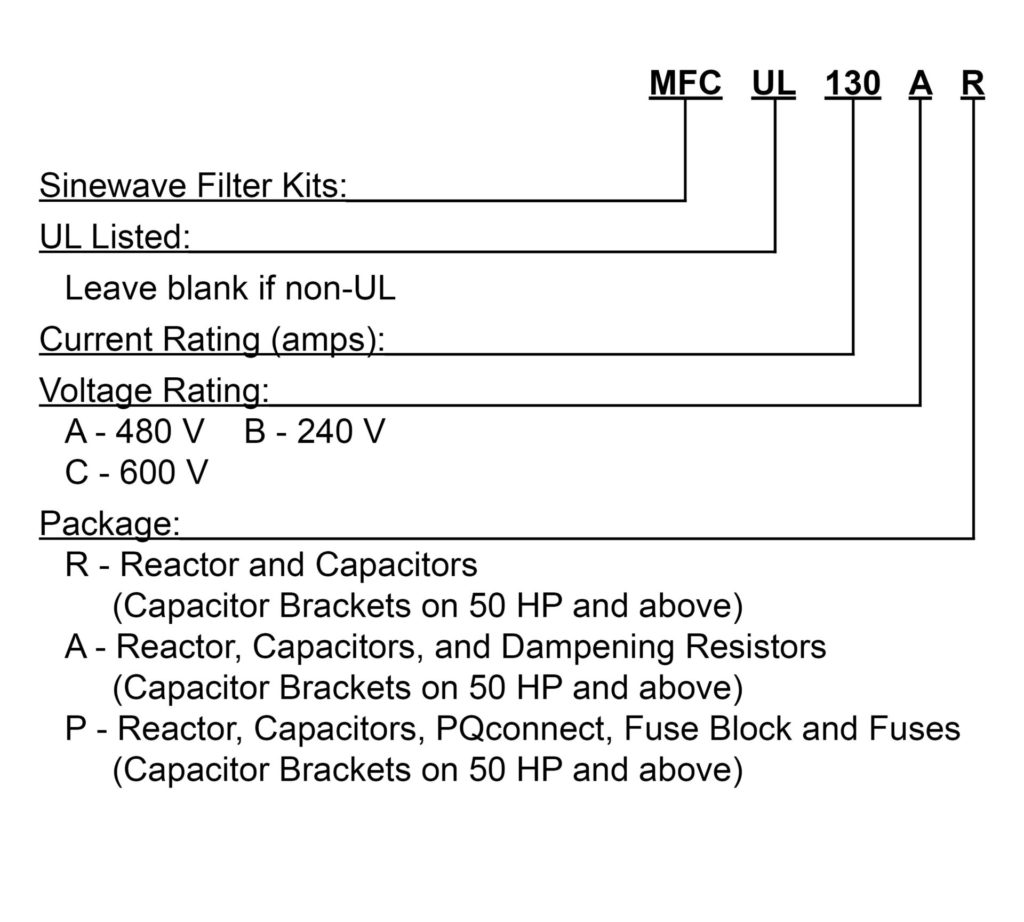

Use the Sine Wave (MFC) Kit Part Numbering chart to determine which kit you need.

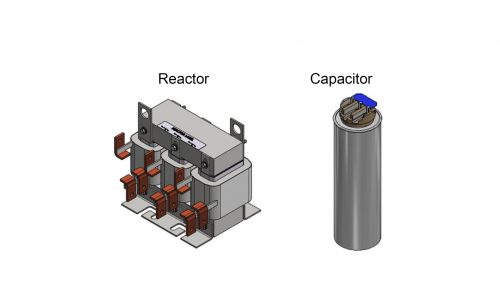

Kit Component Drawings

Components are subject to change without notice. Equivalent parts may be substituted.

Kit Documentation

PQconnect Information

480 V (R) Kits

HP	MFC Kit Part Number	PQconnect PDF	PQconnect DXF	Sine Wave Reactor Part Number	QTY	PDF	DXF	Capacitor 1 Part Number	QTY	PDF	DXF	Bracket 1 Part Number	QTY	PDF	DXF	Capacitor 2 Part Number	QTY	PDF	DXF	Bracket 2 Part Number	QTY	PDF	DXF	Capacitor 3 Part Number	QTY	PDF	DXF	Bracket 3 Part Number	QTY	PDF	DXF
5	MFC008AR	PKPQ10	PKPQ10	KTRMG8A	1	108056DG	108056DG	29338	3	29338	29338
7.5	MFC012AR	PKPQ10	PKPQ10	KTRMG12A	1	108056DG	108056DG	29339	3	29339	29339
10	MFC016AR	PKPQ10	PKPQ10	KTRMG16A	1	108058DG	108058DG	29340	3	29340	29340
15	MFC023AR	PKPQ10	PKPQ10	KTRMG23A	1	108080DG	108080DG	29341	3	29341	29341
20	MFC030AR	PKPQ10	PKPQ10	KTRMG30A	1	108080DG	108080DG	28654	3	28654	28654
25	MFC035AR	PKPQ10	PKPQ10	KTRMG35A	1	108080DG	108080DG	28654	3	28654	28654
30	MFC045AR	PKPQ10	PKPQ10	KTRMG45A	1	108079DG	108079DG	29342	3	29342	29342
40	MFC055AR	PKPQ10	PKPQ10	KTRMG55A	1	108082DG	108082DG	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
50	MFC065AR	PKPQ10	PKPQ10	KTRMG65A	1	108082-1DG	108082-1DG	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
60	MFC080AR	PKPQ10	PKPQ10	KTRMG80A	1	108083-2DG	108083-2DG	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
75	MFC110AR	PKPQ10	PKPQ10	KTRMG110A	1	108083-3DG	108083-3DG	32450	1	32450	32450	BKT1D	1	KCAPBKT1D	KCAPBKT1D
100	MFC130AR	PKPQ10	PKPQ10	KTRMG130A	1	108083DG	108083DG	32450	1	32450	32450	BKT1D	1	KCAPBKT1D	KCAPBKT1D
125	MFC160AR	PKPQ10	PKPQ10	KTRMG160A	1	108095DG	108095DG	32450	1	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B
150	MFC200AR	PKPQ10	PKPQ10	KTRMG200A	1	108095DG	108095DG	32446	1	32446	32446	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	1	32450	32450
200	MFC250AR	PKPQ10	PKPQ10	KTRMG250A	1	108096DG	108096DG	32450	2	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B
250	MFC305AR	PKPQ10	PKPQ10	KTRMG305A	1	108096DG	108096DG	32450	2	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B
300	MFC362AR	PKPQ10	PKPQ10	KTRMG362A	1	108097-9DG	108097-9DG	32450	2	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B	32447	1	32447	32447	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32446	1	32446	32446
350	MFC420AR	PKPQ10	PKPQ10	KTRMG420A	1	108097-2DG	108097-2DG	32450	2	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B	32447	1	32447	32447	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32446	1	32446	32446
400	MFC480AR	PKPQ10	PKPQ10	KTRMG480AX1	1	108097DG	108097DG	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32447	1	32447	32447	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	3	32450	32450	BKT2D	1	KCAPBKT2D	KCAPBKT2D
450	MFC540AR	PKPQ10	PKPQ10	KTRMG540A	1	108097-3DG	108097-3DG	32450	4	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D
500	MFC600AR	PKPQ10	PKPQ10	KTRMG600AX6	1	108097-3DG	108097-3DG	32446	1	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32450	4	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B	32447	1	32447	32447
600	MFC750AR	PKPQ10	PKPQ10	KTRMG750AX2	1	107771DG	107771DG	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32447	1	32447	32447	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	5	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B
700	MFC850AR	PKPQ10	PKPQ10	KTRMG850A	1	108097-8DG	108097-8DG	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	27606	1	27606	27606	BKT2D	1	KCAPBKT2D	KCAPBKT2D	27607	5	27607	27607	BKT4B	1	KCAPBKT4B	KCAPBKT4B
800	MFC960AR	PKPQ10	PKPQ10	KTRMG960A	1	108097DG	108097DG	32446	2	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32450	7	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B
900	MFC1080AR	PKPQ10	PKPQ10	KTRMG540A	2	108097DG	108097DG	32446	2	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32450	8	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B
1000	MFC1200AR	PKPQ10	PKPQ10	KTRMG600A	2	108097DG	108097DG	32446	2	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32447	2	32447	32447	BKT2E	2	KCAPBKT2E	KCAPBKT2E	32450	8	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B

480 V (R) UL Kits

HP	MFC Kit Part Number	Sine Wave Reactor Part Number	Qty	PDF	DXF	STP	Capacitor Assembly Part Number	Qty	PDF	DXF	STP
5	MFCUL008AR	KLRUL8ATBMG	1	108467DG	108467DG	KLRUL8ATBMG	KPCUL00.7A62	1	107158DG	107158DG	KPCUL00.7A62
7.5	MFCUL012AR	KLRUL12ATBMG	1	108467DG	108467DG	KLRUL12ATBMG	KPCUL00.9A62	1	107158DG	107158DG	KPCUL00.9A62
10	MFCUL016AR	KLRUL16ATBMG	1	108468DG	108468DG	KLRUL16ATBMG	KPCUL01.3A62	1	107158DG	107158DG	KPCUL01.3A62
15	MFCUL023AR	KLRUL23ATBMG	1	108469DG	108469DG	KLRUL23ATBMG	KPCUL01.7A64	1	107158DG	107158DG	KPCUL01.7A64
20	MFCUL030AR	KLRUL30ATBMG	1	108470DG	108470DG	KLRUL30ATBMG	KPCUL003A62	1	107158DG	107158DG	KPCUL003A62
25	MFCUL035AR	KLRUL35ATBMG	1	108470DG	108470DG	KLRUL35ATBMG	KPCUL003A62	1	107158DG	107158DG	KPCUL003A62
30	MFCUL045AR	KLRUL45ATBMG	1	108471DG	108471DG	KLRUL45ATBMG	KPCUL004A62	1	107158DG	107158DG	KPCUL004A62
40	MFCUL055AR	KLRUL55ATBMG	1	108472DG	108472DG	KLRUL55ATBMG	KPCUL005A62	1	107207DG	107207DG	KPCUL005A62
50	MFCUL065AR	KLRUL65APTMG	1	108473DG	108473DG	KLRUL65APTMG	KPCUL005A62	1	107207DG	107207DG	KPCUL005A62
60	MFCUL080AR	KLRUL80APTMG	1	108474-1DG	108474-1DG	KLRUL80APTMG	KPCUL005A62	1	107207DG	107207DG	KPCUL005A62
75	MFCUL110AR	KLRUL110APTMG	1	108474-1DG	108474-1DG	KLRUL110APTMG	KPCUL010A62	1	107207DG	107207DG	KPCUL010A62
100	MFCUL130AR	KLRUL130APTMG	1	108474-1DG	108474-1DG	KLRUL130APTMG	KPCUL010A62	1	107207DG	107207DG	KPCUL010A62
125	MFCUL160AR	KLRUL160APTMG	1	108475DG	108475DG	KLRUL160APTMG	KPCUL010A62	1	107207DG	107207DG	KPCUL010A62
150	MFCUL200AR	KLRUL200APTMG	1	108475DG	108475DG	KLRUL200APTMG	KPCUL013A64	1	108328DG	108328DG	KPCUL013A64
200	MFCUL250AR	KLRUL250APTMG	1	108476DG	108476DG	KLRUL250APTMG	KPCUL018A64	1	107645DG	107645DG	KPCUL018A64
250	MFCUL305AR	KLRUL305APTMG	1	108476DG	108476DG	KLRUL305APTMG	KPCUL020A64	1	107635DG	107635DG	KPCUL020A64
300	MFCUL362AR	KLRUL362APTMG	1	108477DG	108477DG	KLRUL362APTMG	KPCUL028A64	1	107607DG	107607DG	KPCUL028A64
350	MFCUL420AR	KLRUL420APTMG	1	108478DG	108478DG	KLRUL420APTMG	KPCUL028A64	1	107607DG	107607DG	KPCUL028A64
400	MFCUL480AR	KLRUL480APTMG	1	108479DG	108479DG	KLRUL480APTMG	KPCUL038A64	1	107636DG	107636DG	KPCUL038A64
450	MFCUL540AR	KLRUL540APTMG	1	108479DG	108479DG	KLRUL540APTMG	KPCUL043A64	1	108329DG	108329DG	KPCUL043A64
500	MFCUL600AR	KLRUL600APTMG	1	108479DG	108479DG	KLRUL600APTMG	KPCUL048A64	1	107637DG	107637DG	KPCUL048A64
600	MFCUL750AR	KLRUL750APTMG	1	108480DG	108480DG	KLRUL750APTMG	KPCUL058A64	1	107638DG	107638DG	KPCUL058A64
700	MFCUL850AR	KLRUL850APTMG	1	108481DG	108481DG	KLRUL850APTMG	KPCUL066A64	1	108330DG	108330DG	KPCUL066A64
800	MFCUL960AR	KLRUL960APTMG	1	108481DG	108481DG	KLRUL960APTMG	KPCUL076A64	1	107639DG	107639DG	KPCUL076A64

480 V (A) Kits

HP	MFC Kit Part Number	Sine Wave Reactor Part Number				Resistor Part Number				Capacitor 1 Part Number				Bracket 1 Part Number				Capacitor 2 Part Number				Bracket 2 Part Number				Capacitor 3 Part Number				Bracket 3 Part Number
5	MFC008AA	KTRMG8A	1	108056DG	108056DG	22956	1	22956	22956	29338	3	29338	29338
7.5	MFC012AA	KTRMG12A	1	108056DG	108056DG	22957	1	22957	22957	29339	3	29339	29339
10	MFC016AA	KTRMG16A	1	108058DG	108058DG	22958	1	22958	22958	29340	3	29340	29340
15	MFC023AA	KTRMG23A	1	108080DG	108080DG	22959	1	22959	22959	29341	3	29341	29341
20	MFC030AA	KTRMG30A	1	108080DG	108080DG	22960	1	22960	22960	28654	3	28654	28654
25	MFC035AA	KTRMG35A	1	108080DG	108080DG	22961	1	22961	22961	28654	3	28654	28654
30	MFC045AA	KTRMG45A	1	108079DG	108079DG	22962	1	22962	22962	29342	3	29342	29342
40	MFC055AA	KTRMG55A	1	108082DG	108082DG	22963	1	22963	22963	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
50	MFC065AA	KTRMG65A	1	108082-1DG	108082-1DG	22964	1	22964	22964	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
60	MFC080AA	KTRMG80A	1	108083-2DG	108083-2DG	22965	1	22965	22965	32447	1	32447	32447	BKT1D	1	KCAPBKT1D	KCAPBKT1D
75	MFC110AA	KTRMG110A	1	108083-3DG	108083-3DG	22966	1	22966	22966	32450	1	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B
100	MFC130AA	KTRMG130A	1	108083DG	108083DG	22697	1	22967	22967	32450	1	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B
125	MFC160AA	KTRMG160A	1	108095DG	108095DG	22968	1	22968	22968	32450	1	32450	32450	BKT1B	1	KCAPBKT1B	KCAPBKT1B
150	MFC200AA	KTRMG200A	1	108095DG	108095DG	24166	1	24166	24166	32450	1	32450	32450	BKT2D	2	KCAPBKT2D	KCAPBKT2D	32446	1	32446	32446
200	MFC250AA	KTRMG250A	1	108096DG	108096DG	22970	1	22970	22970	32450	2	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B	27606	1	27606	27606	BKT2AX1	1	KCAPBKT2AX1	KCAPBKT2AX1	27607	1	27607	27607
250	MFC305AA	KTRMG305A	1	108096DG	108096DG	22971	1	22971	22971	32450	2	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B
300	MFC362AA	KTRMG362A	1	108096DG	108096DG	22972	1	22972	22972	32446	2	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32447	1	32447	32447					32450	2	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B
350	MFC420AA	KTRMG420A	1	108097-9DG	108097-9DG	24167	1	24167	24167	32446	1	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32447	1	32447	32447					32450	2	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B
400	MFC480AA	KTRMG480A	1	108097DG	108097DG	24168	1	24168	24168	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32447	1	32447	32447	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	3	32450	32450	BKT2B	1	KCAPBKT2B	KCAPBKT2B
450	MFC540AA	KTRMG540A	1	108097DG	108097DG	25653	1	25653	25653	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32450	4	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B
500	MFC600AA	KTRMG600A	1	108097DG	108097DG	24169	1	24169	24169	32446	1	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32447	1	32447	32447					32450	4	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B
600	MFC750AA	KTRMG750A	1	108097-4DG	108097-4DG	24170	1	24170	24170	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32447	1	32447	32447	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	5	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B
700	MFC850AA	KTRMG850A	1	108097-6DG	108097-6DG	24795	1	24795	24795	32446	1	32446	32446	BKT1D	1	KCAPBKT1D	KCAPBKT1D	32447	1	32447	32447	BKT2D	1	KCAPBKT2D	KCAPBKT2D	32450	5	32450	32450	BKT4B	1	KCAPBKT4B	KCAPBKT4B
800	MFC960AA	KTRMG960A	1	108097-8DG	108097-8DG	25254	1	25254	25254	32446	2	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32450	7	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B
900	MFC1080AA	KTRMG540A	2	108097DG	108097DG	25653	2	25653	25653	32446	1	32446	32446	BKT2E	1	KCAPBKT2E	KCAPBKT2E	32450	8	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B
1000	MFC1200AA	KTRMG600A	2	108097DG	108097DG	24169	2	24169	24169	32446	1	32446	32446	BKT2E	2	KCAPBKT2E	KCAPBKT2E	32450	8	32450	32450	BKT4B	2	KCAPBKT4B	KCAPBKT4B	32447	2	32447	32447

600 V (R) Kits

HP	MFC Kit Part Number	PQconnect PDF	PQconnect DXF	Sine Wave Reactor Part Number	Qty	PDF	DXF	Capacitor 1 Part Number	Qty	PDF	DXF	Capacitor 2 Part Number	Qty	PDF	DXF	Bracket 1 Part Number	Qty	PDF	DXF	Bracket 2 Part Number	Qty	PDF	DXF
5	MFC008CR	PKPQ10	PKPQ10	KTRMG8C	1	108056DG	108056DG	29370	3	29370	29370
7.5	MFC010CR	PKPQ10	PKPQ10	KTRMG10C	1	108058DG	108058DG	29370	3	29370	29370
10	MFC012CR	PKPQ10	PKPQ10	KTRMG12C	1	108058DG	108058DG	29371	3	29371	29371
15	MFC020CR	PKPQ10	PKPQ10	KTRMG20C	1	108080-1DG	108080-1DG	29372	3	29372	29372
20	MFC025CR	PKPQ10	PKPQ10	KTRMG25C	1	108080-1DG	108080-1DG	29372	3	29372	29372
25	MFC028CR	PKPQ10	PKPQ10	KTRMG28C	1	108081DG	108081DG	29373	3	29373	29373
30	MFC035CR	PKPQ10	PKPQ10	KTRMG35C	1	108079DG	108079DG	29373	3	29373	29373
40	MFC045CR	PKPQ10	PKPQ10	KTRMG45C	1	108082DG	108082DG	26791	3	26791	26791
50	MFC055CR	PKPQ10	PKPQ10	KTRMG55C	1	108083-1DG	108083-1DG	28567	1	28567	28567					BKT1A	1	KCAPBKT1A	KCAPBKT1A
60	MFC065CR	PKPQ10	PKPQ10	KTRMG65C	1	108083DG	108083DG	28567	1	28567	28567					BKT1A	1	KCAPBKT1A	KCAPBKT1A
75	MFC080CR	PKPQ10	PKPQ10	KTRMG80C	1	108083DG	108083DG	28568	1	28568	28568					BKT1B	1	KCAPBKT1B	KCAPBKT1B
100	MFC110CR	PKPQ10	PKPQ10	KTRMG110C	1	108083-4DG	108083-4DG	28568	1	28568	28568					BKT1B	1	KCAPBKT1B	KCAPBKT1B
125	MFC130CR	PKPQ10	PKPQ10	KTRMG130C	1	108083DG	108083DG	28569	1	28569	28569					BKT1B	1	KCAPBKT1B	KCAPBKT1B
150	MFC160CR	PKPQ10	PKPQ10	KTRMG160C	1	108095-1DG	108095-1DG	28567	1	28567	28567	28568	1	28568	28568	BKT2D	1	KCAPBKT2D	KCAPBKT2D
200	MFC200CR	PKPQ10	PKPQ10	KTRMG200C	1	108096-1DG	108096-1DG	28166	2	28166	28166					BKT2B	1	KCAPBKT2B	KCAPBKT2B
250	MFC250CR	PKPQ10	PKPQ10	KTRMG250C	1	108096DG	108096DG	28166	2	28166	28166					BKT2B	1	KCAPBKT2B	KCAPBKT2B
300	MFC305CR	PKPQ10	PKPQ10	KDRMG305C	1	108096DG	108096DG	28569	2	28569	28569					BKT2B	1	KCAPBKT2B	KCAPBKT2B
350	MFC362CR	PKPQ10	PKPQ10	KTRMG362C	1	108097-9DG	108097-9DG	28568	3	28568	28568					BKT4B	1	KCAPBKT4B	KCAPBKT4B
400	MFC420CR	PKPQ10	PKPQ10	KTRMG420C	1	108097-9DG	108097-9DG	28166	4	28166	28166					BKT4B	1	KCAPBKT4B	KCAPBKT4B
500	MFC500CR	PKPQ10	PKPQ10	KTRMG500C	1	108097-1DG	108097-1DG	28567	1	28567	28567	28568	4	28568	28568	BKT1D	1	KCAPBKT1D	KCAPBKT1D	BKT4B	1	KCAPBKT4B	KCAPBKT4B
700	MFC750CR	PKPQ10	PKPQ10	KTRMG750C	1	108097-7DG	108097-7DG	28569	1	28569	28569					BKT1B	1	KCAPBKT1B	KCAPBKT1B	BKT4B	1	KCAPBKT4B	KCAPBKT4B

600 V (R) UL Kits

HP	MFC Kit Part Number	Sine Wave Reactor Part Number	Qty	PDF	DXF	STP	Capacitor Assembly Part Number	Qty	PDF	DXF	STP
5	MFCUL008CR	KLRUL8CTBMG	1	108467DG	108467DG	KLRUL8CTBMG	KPCUL00.8C62	1	107158DG	107158DG	KPCUL00.8C62
7.5	MFCUL010CR	KLRUL10CTBMG	1	108467DG	108467DG	KLRUL10CTBMG	KPCUL00.8C62	1	107158DG	107158DG	KPCUL00.8C62
10	MFCUL012CR	KLRUL12CTBMG	1	108468DG	108468DG	KLRUL12CTBMG	KPCUL001C62	1	107158DG	107158DG	KPCUL001C62
15	MFCUL020CR	KLRUL20CTBMG	1	108470DG	108470DG	KLRUL20CTBMG	KPCUL01.4C64	1	107158DG	107158DG	KPCUL002C62
20	MFCUL025CR	KLRUL25CTBMG	1	108470DG	108470DG	KLRUL25CTBMG	KPCUL002C62	1	107158DG	107158DG	KPCUL002C62
25	MFCUL028CR	KLRUL28CTBMG	1	108524DG	108524DG	KLRUL28CTBMG	KPCUL02.7C62	1	107158DG	107158DG	KPCUL02.7C62
30	MFCUL035CR	KLRUL35CTBMG	1	108471DG	108471DG	KLRUL35CTBMG	KPCUL02.7C62	1	107158DG	107158DG	KPCUL02.7C62
40	MFCUL045CR	KLRUL45CTBMG	1	108472DG	108472DG	KLRUL45CTBMG	KPCUL004C62	1	107207DG	107207DG	KPCUL004C62
50	MFCUL055CR	KLRUL55CTBMG	1	108525DG	108525DG	KLRUL55CTBMG	KPCUL005C62	1	107207DG	107207DG	KPCUL005C62
60	MFCUL065CR	KLRUL65CPTMG	1	108474DG	108474DG	KLRUL65CTBMG	KPCUL005C62	1	107207DG	107207DG	KPCUL005C62
75	MFCUL080CR	KLRUL80CPTMG	1	108474DG	108474DG	KLRUL80CTBMG	KPCUL010C62	1	107207DG	107207DG	KPCUL010C62
100	MFCUL110CR	KLRUL110CPTMG	1	108474-1DG	108474-1DG	KLRUL110CTBMG	KPCUL010C62	1	107207DG	107207DG	KPCUL010C62
125	MFCUL130CR	KLRUL130CPTMG	1	108474DG	108474DG	KLRUL130CTBMG	KPCUL015C62	1	107207DG	107207DG	KPCUL015C63
150	MFCUL160CR	KLRUL160CPTMG	1	108526DG	108526DG	KLRUL160CPTMG	KPCUL015C64	1	108328DG	108328DG	KPCUL015C64
200	MFCUL200CR	KLRUL200CPTMG	1	108527DG	108527DG	KLRUL200CPTMG	KPCUL020C64	1	107645DG	107645DG	KPCUL020C63
250	MFCUL250CR	KLRUL250CPTMG	1	108476DG	108476DG	KLRUL250CPTMG	KPCUL020C64	1	107635DG	107635DG	KPCUL020C63
300	MFCUL305CR	KLRUL305CPTMG	1	108476DG	108476DG	KLRUL305CPTMG	KPCUL030A64	1	107607DG	107607DG	KPCUL030A63
350	MFCUL362CR	KLRUL362CPTMG	1	108478DG	108478DG	KLRUL362CPTMG	KPCUL030A64	1	107607DG	107607DG	KPCUL030A63
400	MFCUL420CR	KLRUL420CPTMG	1	108478DG	108478DG	KLRUL420CPTMG	KPCUL040C64	1	107636DG	107636DG	KPCUL040C63
500	MFCUL500CR	KLRUL500CPTMG	1	108528DG	108528DG	KLRUL500CPTMG	KPCUL045C64	1	108329DG	108329DG	KPCUL045C64
600	MFCUL600CR	KLRUL600CPTMG	1	108528DG	108528DG	KLRUL600CPTMG	KPCUL060C64	1	107637DG	107637DG	KPCUL060C63
750	MFCUL750CR	KLRUL750CPTMG	1	108529DG	108529DG	KLRUL750CPTMG	KPCUL075C64	1	107638DG	107638DG	KPCUL075C63

600 V (A) Kits

HP	MFC Kit Part Number	Sine Wave Reactor Part Number	Qty	PDF	DXF	Resistor Part Number	Qty	PDF	DXF	Capacitor 1 Part Number	Qty	PDF	DXF	Bracket 1 Part Number	Qty	PDF	DXF	Capacitor 2 Part Number	Qty	PDF	DXF	Bracket 2 Part Number	Qty	PDF	DXF
5	MFC008CA	KTRMG8C	1	108056DG	108056DG	24171	1	24171	24171	29370	3	29370	29370
7.5	MFC010CA	KTRMG10C	1	108058DG	108058DG	22935	1	22935	22935	29370	3	29370	29370
10	MFC012CA	KTRMG12C	1	108058DG	108058DG	22936	1	22936	22936	29371	3	29371	29371
15	MFC020CA	KTRMG20C	1	108080-1DG	108080-1DG	24172	1	24172	24172	29372	3	29372	29372
20	MFC025CA	KTRMG25C	1	108080-1DG	108080-1DG	22938	1	22938	22938	29372	3	29372	29372
25	MFC028CA	KTRMG28C	1	108081DG	108081DG	22939	1	22939	22939	29373	3	29373	29373
30	MFC035CA	KTRMG35C	1	108079DG	108079DG	22940	1	22940	22940	29373	3	29373	29373
40	MFC045CA	KTRMG45C	1	108082DG	108082DG	22941	1	22941	22941	26791	3	26791	26791
50	MFC055CA	KTRMG55C	1	108083-1DG	108083-1DG	22942	1	22942	22942	28567	1	28567	28567	BKT1A	1	KCAPBKT1A	KCAPBKT1A
60	MFC065CA	KTRMG65C	1	101941DG	101941DG	22943	1	22943	22943	28567	1	28567	28567	BKT1A	1	KCAPBKT1A	KCAPBKT1A
75	MFC080CA	KTRMG80C	1	108083DG	108083DG	22944	1	22944	22944	28568	1	28568	28568	BKT1B	1	KCAPBKT1B	KCAPBKT1B
100	MFC110CA	KTRMG110C	1	108083-4DG	108083-4DG	22945	1	22945	22945	28568	1	28568	28568	BKT1B	1	KCAPBKT1B	KCAPBKT1B
125	MFC130CA	KTRMG130C	1	108083DG	108083DG	22946	1	22946	22946	28569	1	28569	28569	BKT1B	1	KCAPBKT1B	KCAPBKT1B
150	MFC160CA	KTRMG160C	1	108095-1DG	108095-1DG	22947	1	22947	22947	28567	1	28567	28567	BKT2D	1	KCAPBKT2D	KCAPBKT2D	28568	1	28568	28568
200	MFC200CA	KTRMG200C	1	108096-1DG	108096-1DG	24166	1	24166	24166	28568	2	28568	28568	BKT2B	1	KCAPBKT2B	KCAPBKT2B
250	MFC250CA	KTRMG250C	1	108096DG	108096DG	22949	1	22949	22949	28568	2	28568	28568	BKT2B	1	KCAPBKT2B	KCAPBKT2B
300	MFC305CA	KTRMG305C	1	108096DG	108096DG	22950	1	22950	22950	28569	2	28569	28569	BKT2B	1	KCAPBKT2B	KCAPBKT2B
350	MFC362CA	KTRMG362C	1	108097-9DG	108097-9DG	22951	1	22951	22951	28568	3	28568	28568	BKT1B	1	KCAPBKT1B	KCAPBKT1B					BKT2B	1	KCAPBKT2B	KCAPBKT2B
400	MFC420CA	KTRMG420C	1	108097-9DG	108097-9DG	22952	1	22952	22952	28568	4	28568	28568	BKT4B	1	KCAPBKT4B	KCAPBKT4B
500	MFC500CA	KTRMG500C	1	108097-1DG	108097-1DG	24173	1	24173	24173	28568	4	28568	28568	BKT1B	1	KCAPBKT1B	KCAPBKT1B	28567	1	28567	28567	BKT1D	1	KCAPBKT1D	KCAPBKT1D
600	MFC600CA	KTRMG600C	1	108097-1DG	108097-1DG	24174	1	24174	24174	28569	4	28569	28569	BKT4B	1	KCAPBKT4B	KCAPBKT4B
700	MFC750CA	KTRMG750C	1	108097-7DG	108097-7DG	24876	1	24876	24876	28569	5	28569	28569	BKT4B	1	KCAPBKT4B	KCAPBKT4B					BKT1B	1	KCAPBKT1B	KCAPBKT1B
