KDRULX1L

KDRULX1L

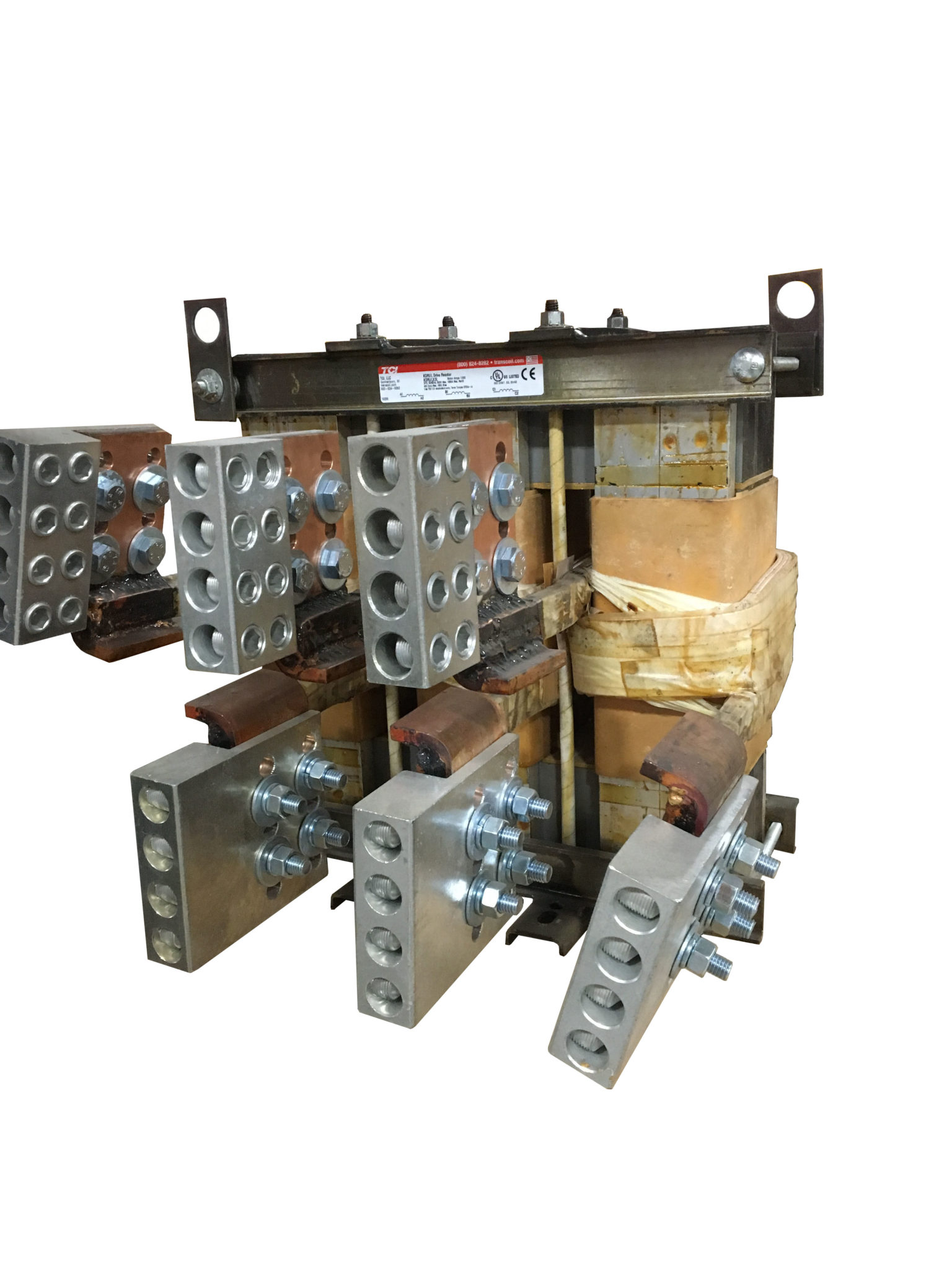

KDR, 480V, 1200A, 1000HP, 3 Phase, Open, Input Line Inductor, Low Impedance, UL Listed

SKU: KDRULX1L Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Lug Kit (PDF) Lug Kit (DXF)

Additional information

Specifications

Amps 1200
Country of Origin US
DIN Rail Option None
Enclosure Type Open
Hertz (Hz) 50/60
Horsepower (HP) 1000.0
Impedance % 3%
Impedance Value 3% Low Z
Mounting Depth 18.0
Mounting Width 21.0
Phase 3
Rated Voltage 480
Temp Rise 155
Term Torque 375lb-in
Term Type PT
UL UL Listed
Watts Loss 1246.0
Dimensions
  • Height: 18.5 in
  • Width: 21.0 in
  • Depth: 18.0 in
Weight 317.0 lbs
