KDRL32PC5

KDRL32PC5

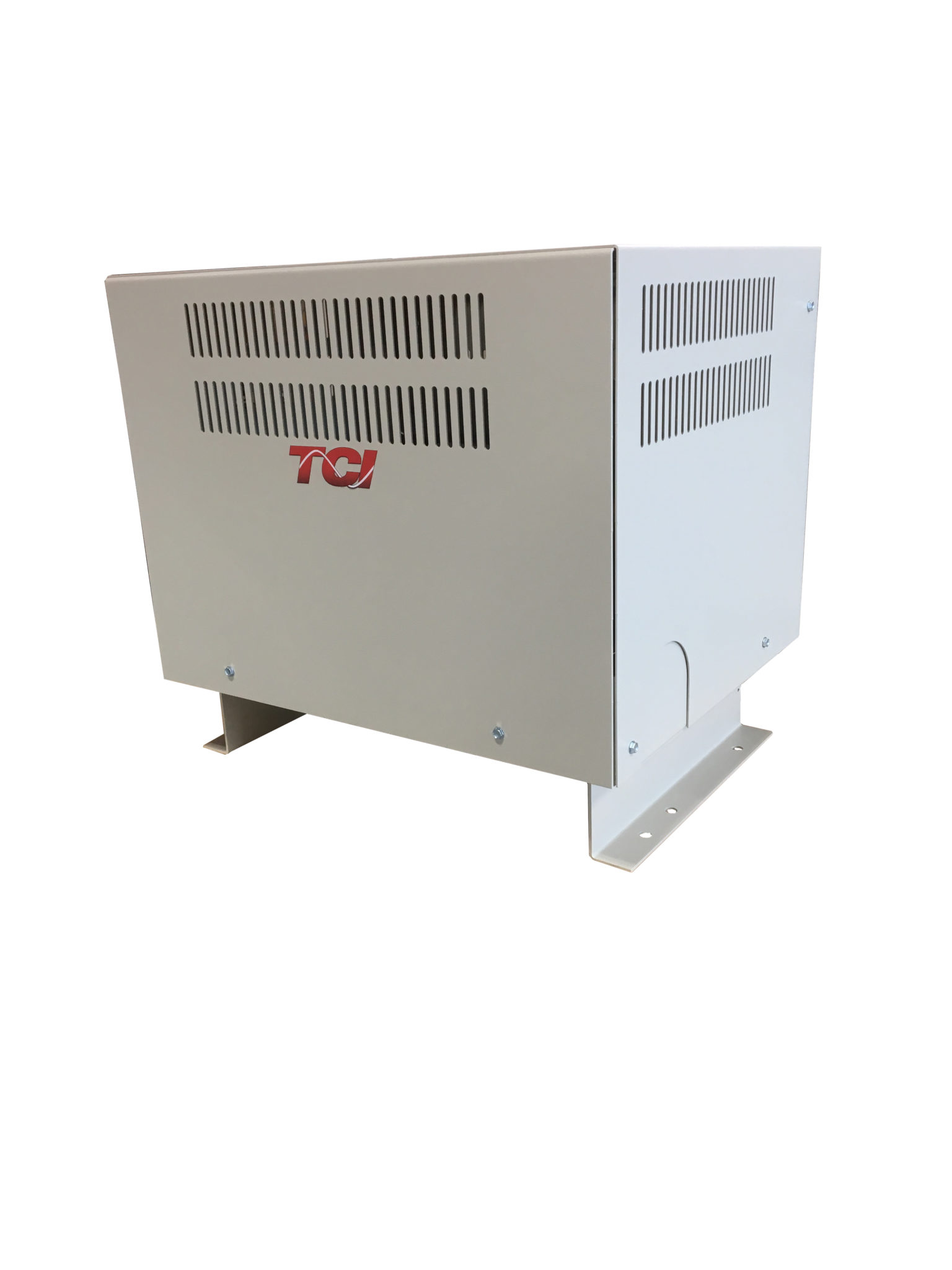

KDR, 575V, 480A, 500HP, 3 Phase, NEMA 1, Output Line Inductor, , UL Recognized

SKU: KDRL32PC5 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Rated Voltage 575
Horsepower (HP) 500.0
Amps 480
Impedance Value < 3% Ultra Low Z
DIN Rail Option None
Enclosure Type NEMA 1
Watts Loss 587.0
Phase 3
Hertz (Hz) 50/60
Temp Rise 155
Country of Origin US
Dimensions
  • Height: 18.5 in
  • Width: 20.0 in
  • Depth: 16.0 in
Weight 145.0 lbs
