KDRG3HC4

KDRG3HC4

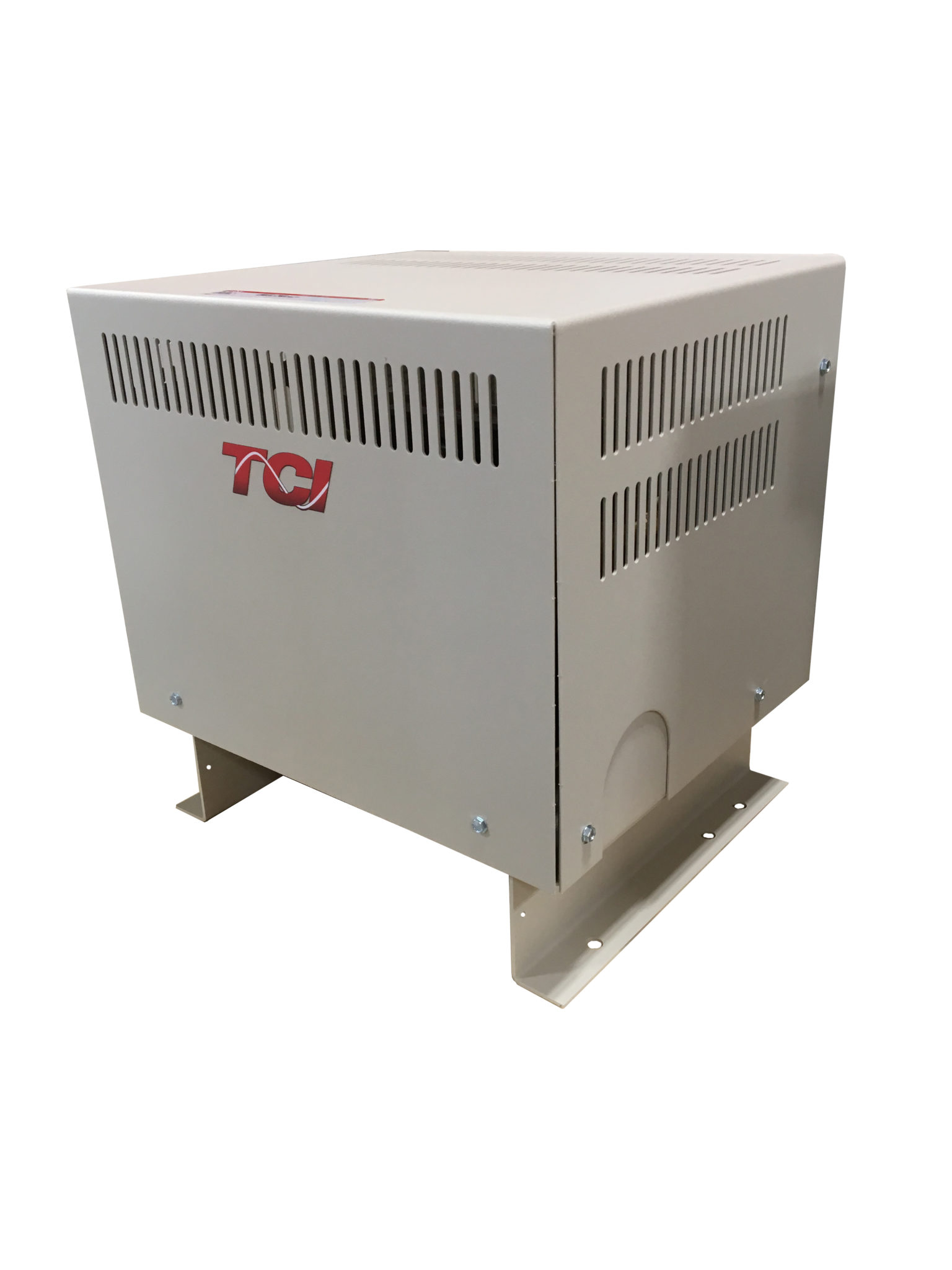

KDR, 480V, 160A, 125HP, 3 Phase, NEMA 1, Input Line Inductor, High Impedance, UL Recognized

SKU: KDRG3HC4 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Rated Voltage 480
Horsepower (HP) 125.0
Amps 160
Impedance Value 5% High Z
DIN Rail Option None
Enclosure Type NEMA 1
Watts Loss 290.0
Phase 3
Hertz (Hz) 50/60
Temp Rise 115
Country of Origin US
Dimensions
  • Height: 15.6 in
  • Width: 15.5 in
  • Depth: 13.25 in
Weight 87.0 lbs
