KDRF44HV

KDRF44HV

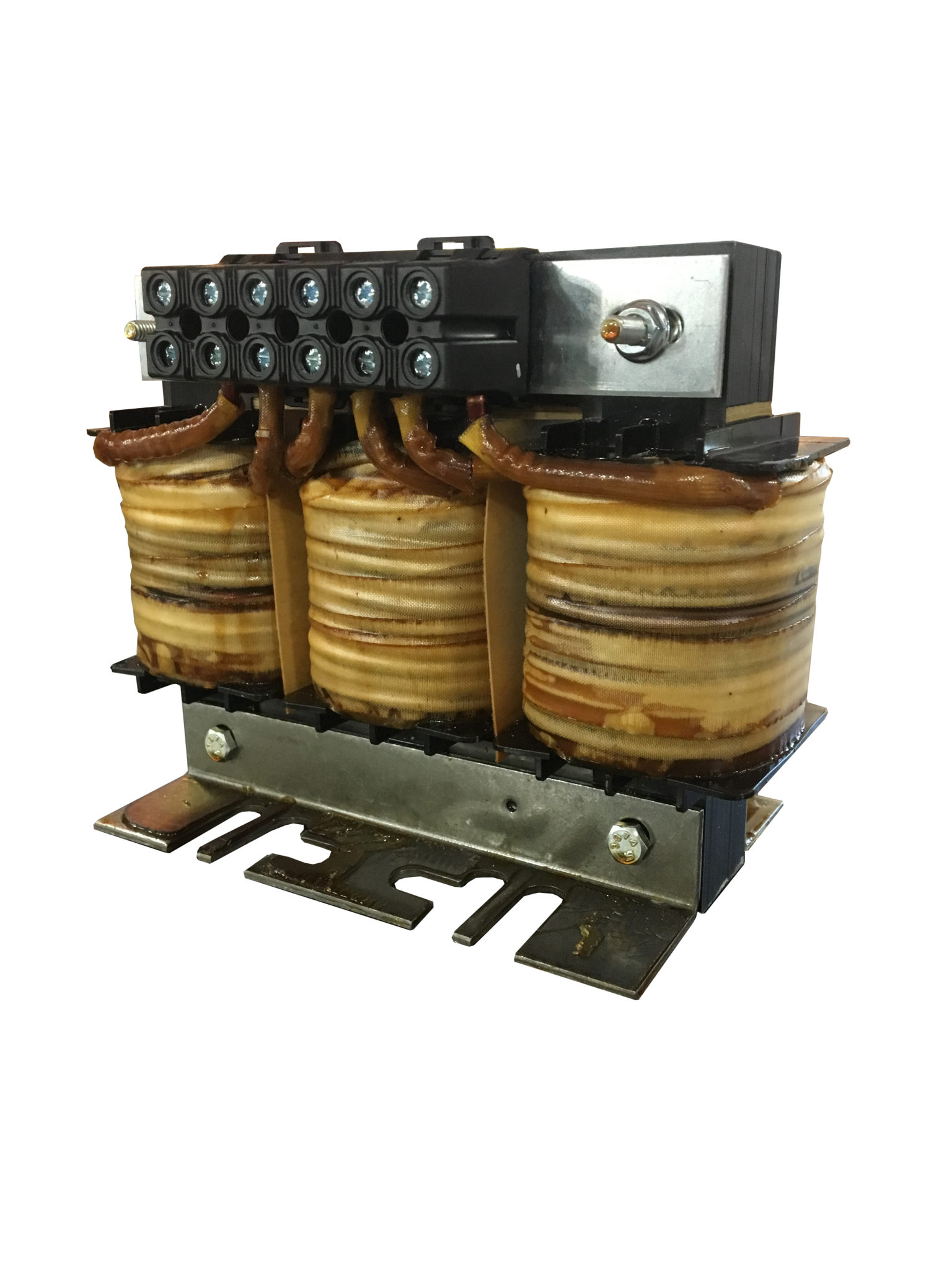

KDR, 690V, 44A, 40HP, 3 Phase, Open, Input Line Inductor, High Impedance, UL Recognized

SKU: KDRF44HV Categories: ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Rated Voltage 690
Horsepower (HP) 40.0
Amps 44
Impedance Value 5% High Z
DIN Rail Option None
UL UL Recognized
Enclosure Type Open
Watts Loss 172.0
Phase 3
Hertz (Hz) 50/60
Temp Rise 135
Model Input Reactor
Country of Origin US
Dimensions
  • Height: 7.0 in
  • Width: 9.0 in
  • Depth: 6.0 in
Weight 30.0 lbs
