KDRF2HC3

KDRF2HC3

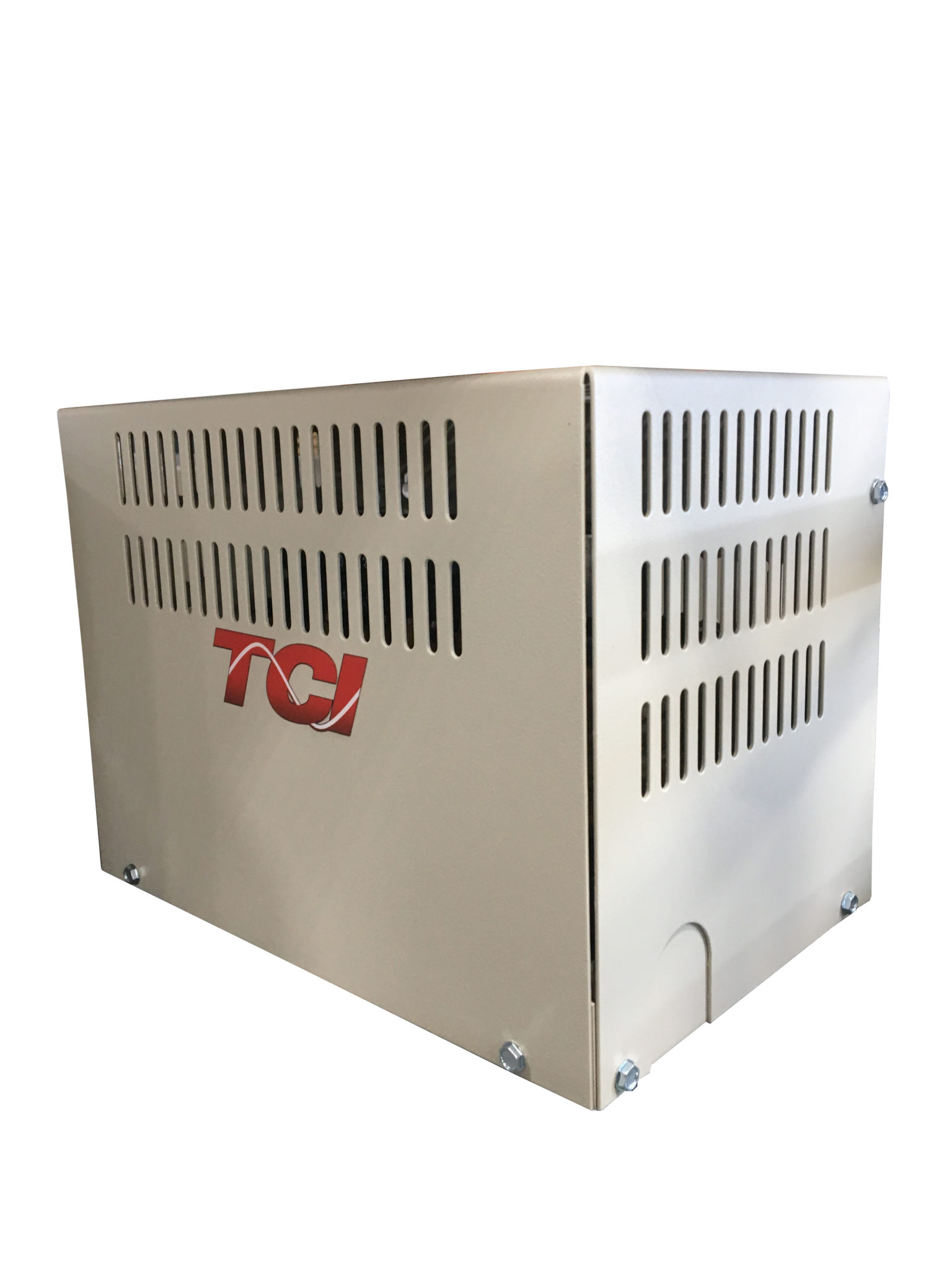

KDR, 480V, 77A, 60HP, 3 Phase, NEMA 1, Input Line Inductor, High Impedance, UL Recognized

SKU: KDRF2HC3 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Rated Voltage 480
Horsepower (HP) 60.0
Amps 77
Impedance Value 5% High Z
DIN Rail Option None
Enclosure Type NEMA 1
Watts Loss 226.0
Phase 3
Hertz (Hz) 50/60
Temp Rise 135
Country of Origin US
Dimensions
  • Height: 9.0 in
  • Width: 12.0 in
  • Depth: 8.0 in
Weight 37.0 lbs
