KDRD33PC2V

KDRD33PC2V

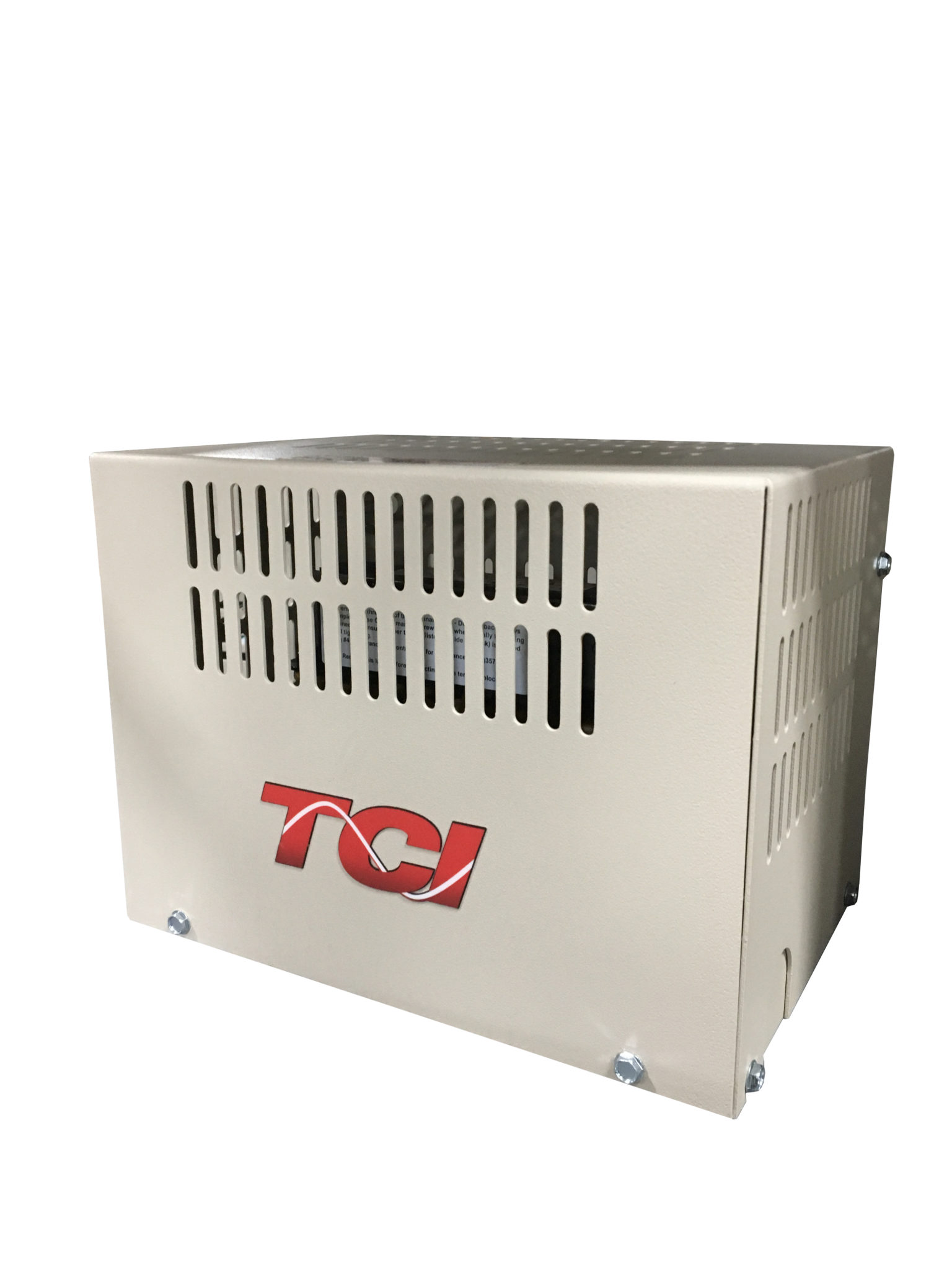

KDR, 690V, 35A, 30HP, 3 Phase, NEMA 1, Output Line Inductor, , UL Recognized

SKU: KDRD33PC2V Category:

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Amps 35
Country of Origin US
DIN Rail Option None
Enclosure Type NEMA 1
Hertz (Hz) 50/60
Horsepower (HP) 30.0
Impedance % 1.5%
Impedance Value < 3% Ultra Low Z
Phase 3
Rated Voltage 690
RoHS Indicator Compliant
Temp Rise 135
Term Type RL
Watts Loss 106.0
Dimensions
  • Height: 7.5 in
  • Width: 10.0 in
  • Depth: 7.0 in
Weight 16.0 lbs
