KDRAA1H2E3R1

KDRAA1H2E3R1

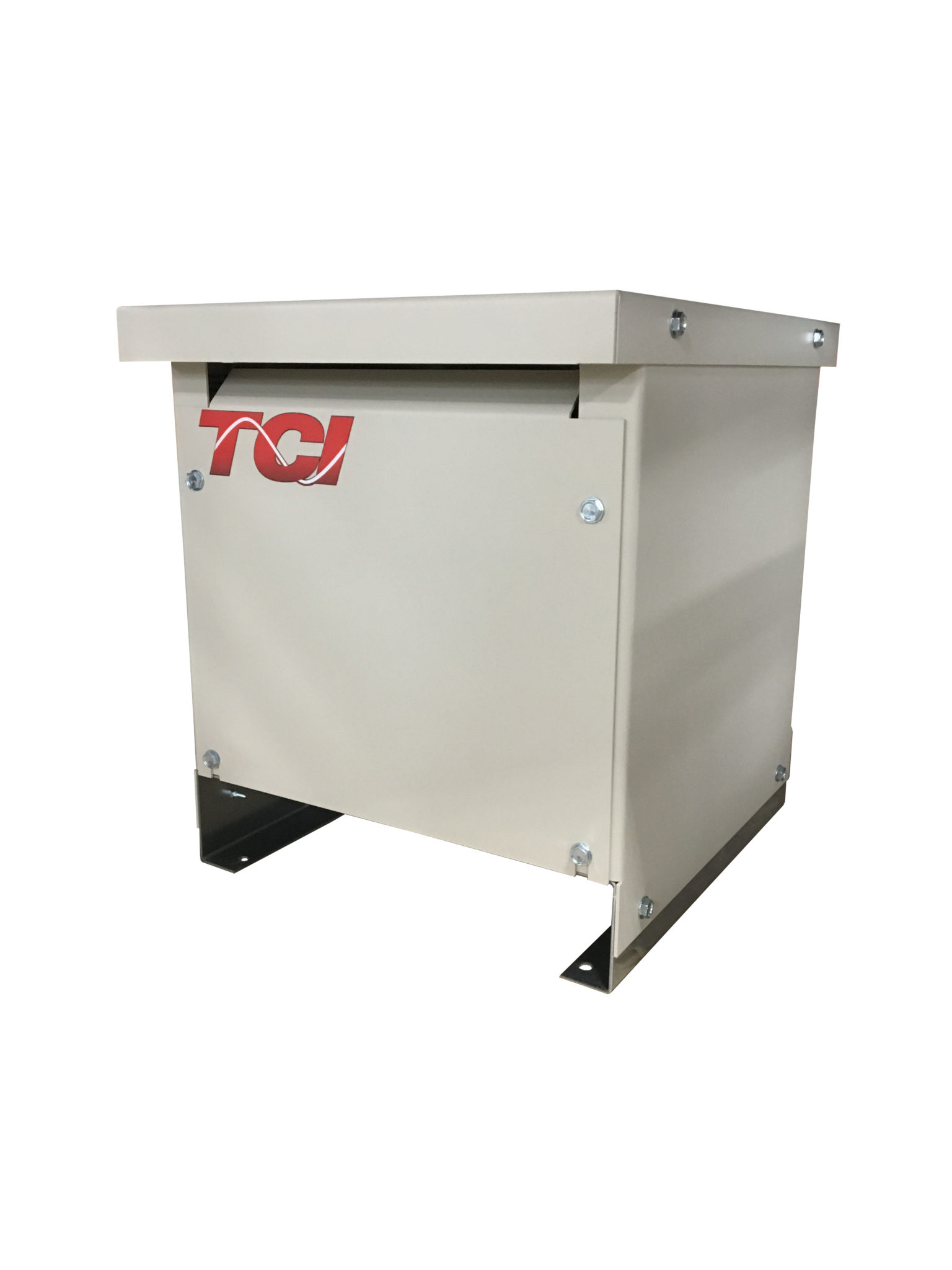

KDR, 480V, 2 HP, 3.40 Motor Amps, 3.8 Max Amps, 3 Phase, Type 3R, Line Inductor, 5% Impedance. UL Listed.

SKU: KDRAA1H2E3R1 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Rated Voltage 480
Horsepower (HP) 2.0
Amps 3.8
Impedance Value 5% High Z
DIN Rail Option None
UL UL Listed
Enclosure Type UL Type 3R
Watts Loss 33.0
Phase 3
Hertz (Hz) 50/60
Temp Rise 135
Model Input Reactor
Dimensions
  • Height: 11.45 in
  • Width: 10.31 in
  • Depth: 12.0 in
Weight 18.0 lbs
