HGP0030CW1C1000

HGP0030CW1C1000

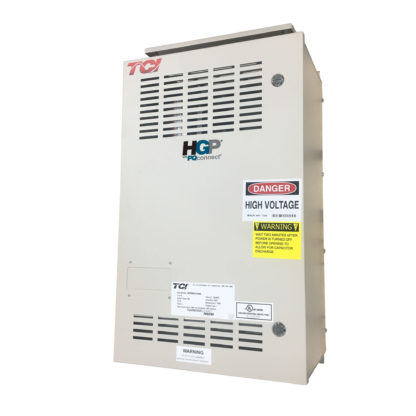

HGP, 600V, 30HP, 3 Phase, 60 Hz, Type 1, Passive Harmonic Filter, Contactor, PQconnect Option

SKU: HGP0030CW1C1000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage 600
Horsepower (HP) 30.0
Amps 32
Enclosure Type UL Type 1
Watts Loss 310.0
Phase 3
Hertz (Hz) 60
Isolation Contactor Contactor
Connectivity PQconnect w/ Modbus RTU
Model Standard
Dimensions
  • Height: 31.7 in
  • Width: 11.5 in
  • Depth: 12.54 in
Weight 145.0 lbs
