HGP0020AW1S0000

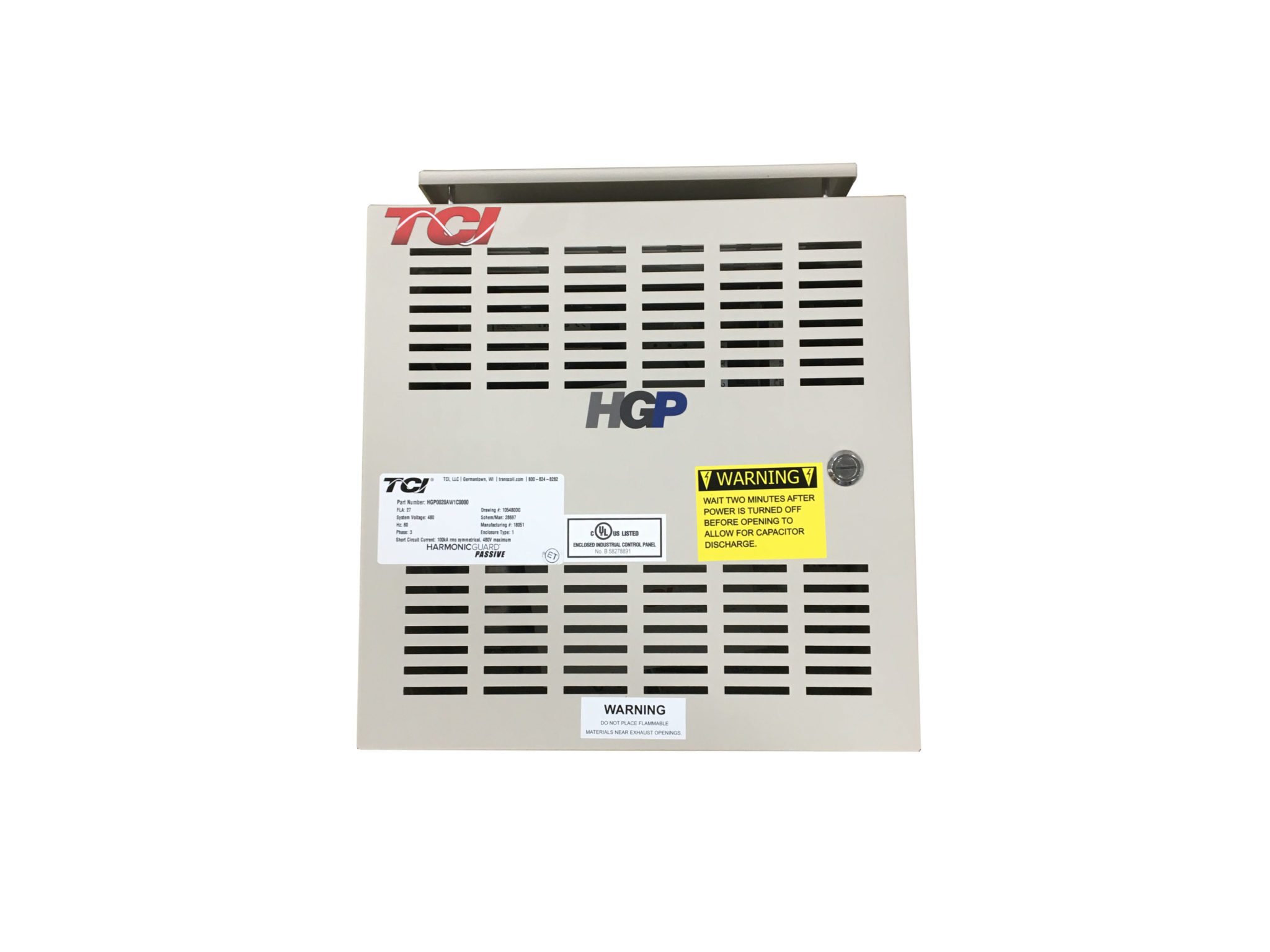

HGP, 480V, 20HP, 3 Phase, 60 Hz, Type 1, Passive Harmonic Filter, No Contactor Option

SKU: HGP0020AW1S0000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF) Dimensions and Ratings Table (PDF)

Additional information

Specifications

Rated Voltage

480
Hertz (Hz)

60
Horsepower (HP)

20.0
kVAR

6
Phase

3
Amps

27
Enclosure Type

UL Type 1
Watts Loss

275.0
Country of Origin

US
Connectivity

None
Isolation Contactor

None
Dimensions
  • Height: 20.7 in
  • Width: 17.62 in
  • Depth: 12.52 in
Weight 86.0 lbs
