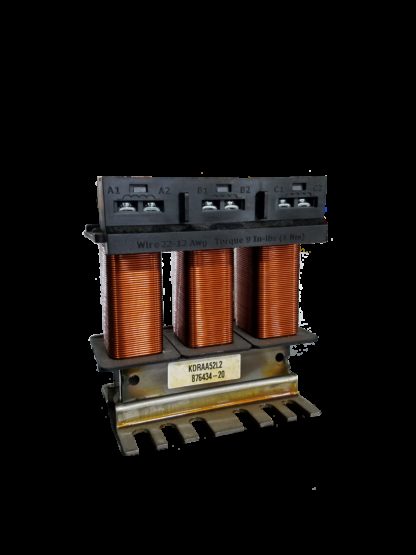

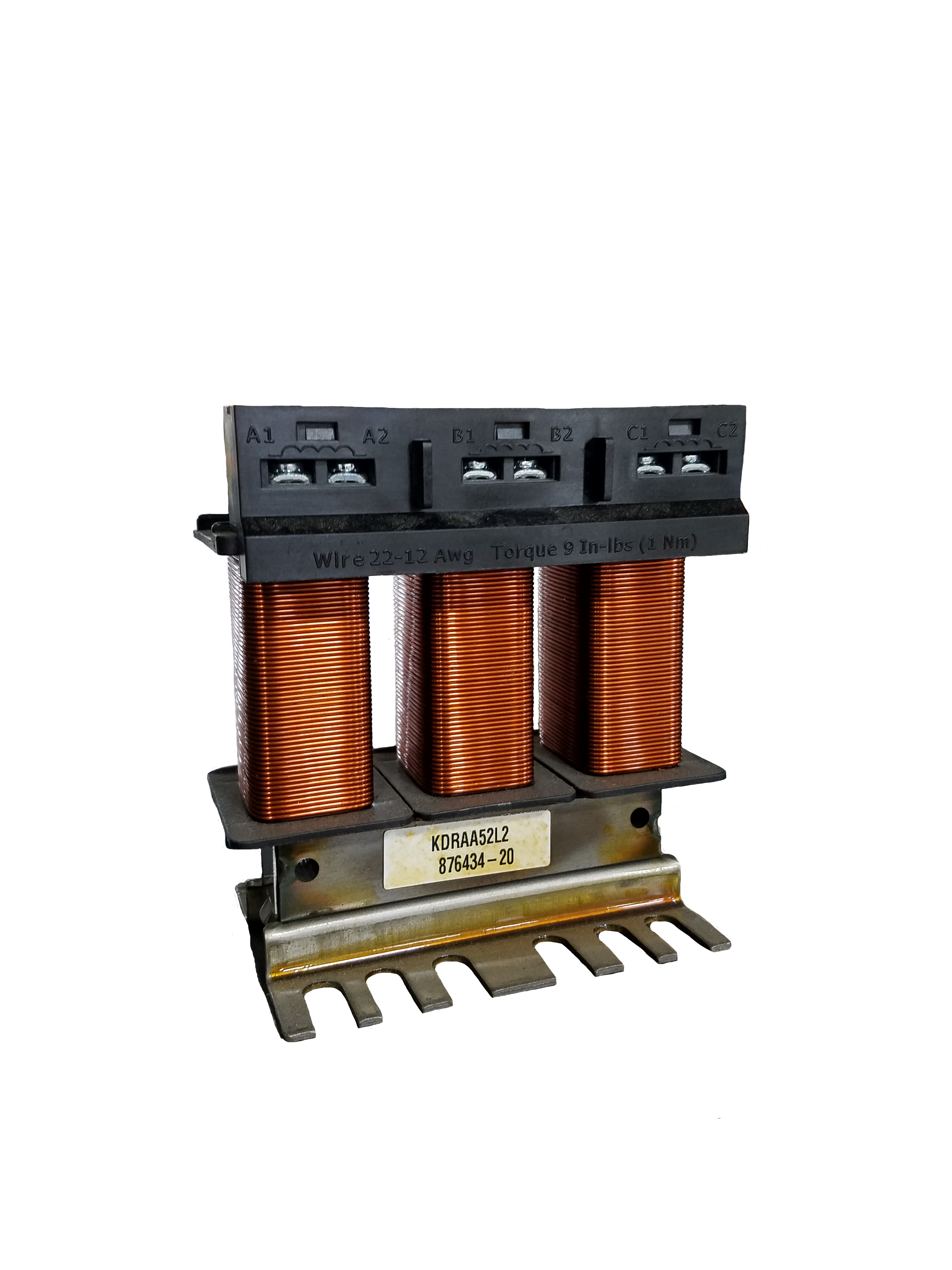

KDRAA52L2

KDR, 600V, 3 HP, 3.9 Motor Amps, 4.5 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor, 3% Impedance. UL Listed.

SKU: KDRAA52L2 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Impedance Value

3% Low Z
Rated Voltage

600
Horsepower (HP)

3.0
Amps

4.5
Impedance %

3%
DIN Rail Option

None
UL

UL Listed
kVAR

0
Enclosure Type

Open
Watts Loss

30.0
Phase

3
Hertz (Hz)

50/60
Country of Origin

US
Temp Rise

135
Term Type

TB
Model

Input Reactor
Dimensions
  • Height: 4.44 in
  • Width: 4.25 in
  • Depth: 2.64 in
Weight 3.5 lbs
